กลอนคู่สิ้นสุด
>
A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

ชื่อแบรนด์: FLRS or OEM
เลขรุ่น: FLRS-S025
ขั้นต่ำ: 1 ชิ้น
ราคา: usd0.1-15 per pc
รายละเอียดการบรรจุ: กล่อง/กรณีไม้อัด/พาเลทไม้อัด
เงื่อนไขการจ่ายเงิน: T/T, L/C, Western สหภาพ, เพย์พาล
ข้อมูลรายละเอียด
สถานที่กำเนิด:
จีน
ได้รับการรับรอง:
ISO9001
ชื่อ:
สตั๊ดโบลท์
วัสดุ:
A193 B7/ A194 2H
มาตรฐาน:
ANSI / ASME
เสร็จ:
ไฟเบอร์
ด้าย:
ยูเอ็นซี
สี:
สีฟ้า
สามารถในการผลิต:
60ตัน/เดือน
คําอธิบายสินค้า

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications


XYLAN:

It is a registered trademark of high-performance fluoropolymer coatings manufactured by Whitford Corporation (USA). It is a PTFE-based anti-corrosion coating system. After proper surface pretreatment, the coating is sprayed onto metal substrates and thermally cured to form a protective film. It delivers outstanding metal protection featuring superior resistance to chemical corrosion and comprehensive functional advantages.

Data Sheet:

Standard ANSI/ASME
Size Standard & non-standard, customized
Material Carbon Steel, Stainless Steel and Alloy Steel
Grade A193 B7 / A194 2H
Thread UNC
Finish PTFE coating
Packing Bulk in cartons on wood pallet or according to customer special demand.
Application Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile:
Supply Ability About 60 tons per month
MOQ 50pcs
Trade Term FOB/CIF/CFR/EXW/DAP
Payment T/T,  L/C , Western Union

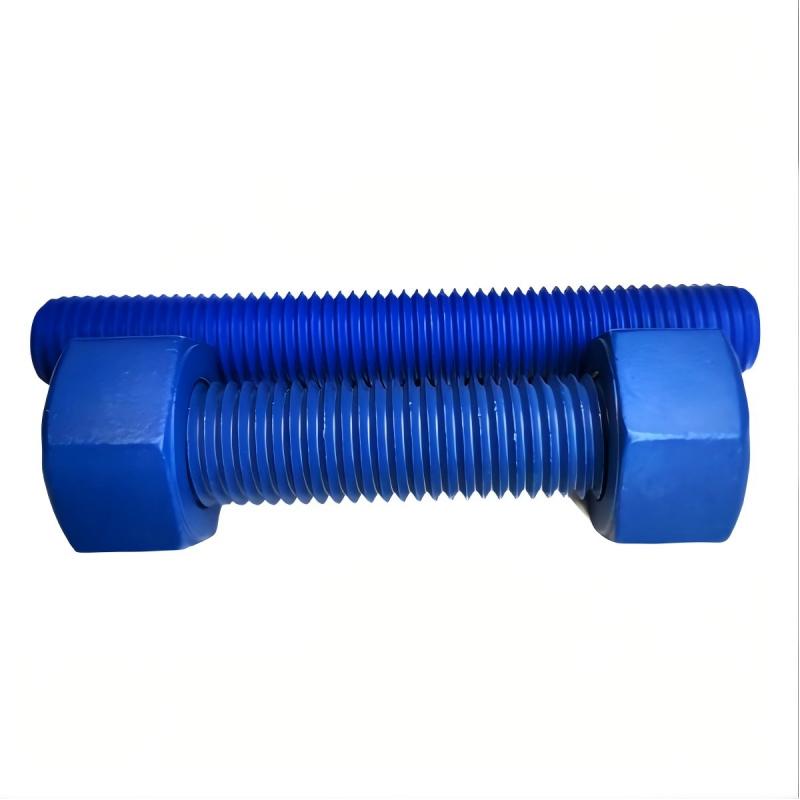

Picture:

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications


Technical specifications:

Dry Film Thickness fasteners : 20-25microns
Structural Components : 20-30microns
Reduces make up torque:  70%
Coefficient of Friction:  0.08-0.11
Basecoat bond strength: 4000Psi
Topcoat Pencil hardness:  3-8H
Adhesion Standard :ASTM D3359:  4B,5B
Available Colors:Blue, Red, Yellow, Green
Operating Temperature Range:  -195℃ to +260℃
