| ชื่อแบรนด์: | FLRS or OEM |
| เลขรุ่น: | FLRS-RR003 |
| ขั้นต่ำ: | 1 ชิ้น |
| เงื่อนไขการจ่ายเงิน: | L / C, T / T |

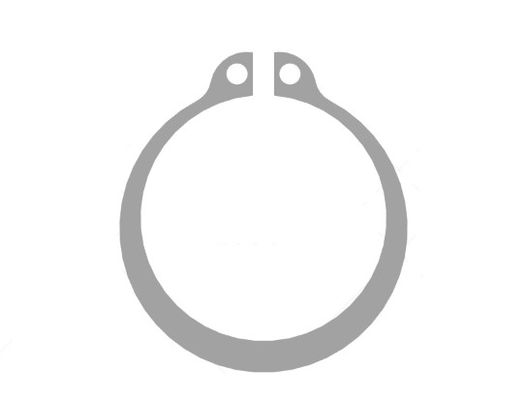

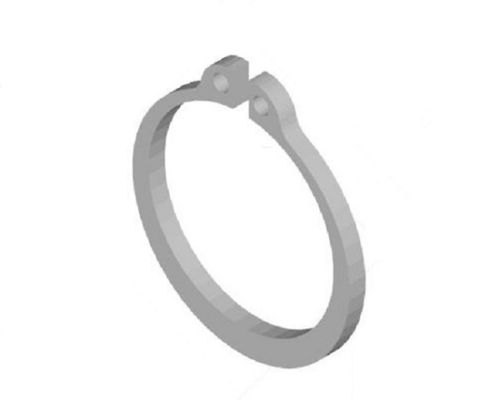

สปริงเหล็ก DIN 471 แหวนล็อคสลักสำหรับเพลา / วงแหวนยึดภายนอก (9＜d≤300มม.)
| นอม ขนาด |
NS | ชม | d1 นาที |
น้ำหนัก(กก./1พันชิ้น) | นอม ขนาด |
NS | ชม | d1 นาที |
น้ำหนัก(กก./1พันชิ้น) | ||||
| max | นาที | max | นาที | max | นาที | max | นาที | ||||||
| 15 | 13.9 | 13.44 | 1 | 0.94 | 1.7 | 0.67 | 48 | 44.89 | 43.6 | 1.75 | 1.69 | 2.5 | 7.9 |
| 16 | 14.8 | 14.34 | 1 | 0.94 | 1.7 | 0.7 | 50 | 46.19 | 44.9 | 2 | 1.93 | 2.5 | 10.2 |
| 17 | 15.8 | 15.34 | 1 | 0.94 | 1.7 | 0.82 | 52 | 48.19 | 46.9 | 2 | 1.93 | 2.5 | 11.1 |
| 18 | 16.6 | 16.14 | 1.2 | 1.14 | 2 | 1.11 | 55 | 51.26 | 49.7 | 2 | 1.93 | 2.5 | 11.4 |
| 19 | 17.6 | 17.14 | 1.2 | 1.14 | 2 | 1.22 | 56 | 52.26 | 50.7 | 2 | 1.93 | 2.5 | 11.8 |
| 20 | 18.63 | 18.08 | 1.2 | 1.14 | 2 | 1.3 | 58 | 54.26 | 52.7 | 2 | 1.93 | 2.5 | 12.6 |
| 21 | 19.63 | 19.08 | 1.2 | 1.14 | 2 | 1.42 | 60 | 56.26 | 54.7 | 2 | 1.93 | 2.5 | 12.9 |
| 22 | 20.63 | 20.08 | 1.2 | 1.14 | 2 | 1.6 | 62 | 58.26 | 56.7 | 2 | 1.93 | 2.5 | 14.3 |
| 24 | 22.41 | 21.78 | 1.2 | 1.14 | 2 | 1.77 | 63 | 59.26 | 57.7 | 2 | 1.93 | 2.5 | 15.9 |
| 25 | 23.41 | 22.78 | 1.2 | 1.14 | 2 | 1.9 | 65 | 61.26 | 59.7 | 2.5 | 2.43 | 3 | 18.2 |
| 26 | 24.41 | 23.78 | 1.2 | 1.14 | 2 | 1.96 | 68 | 63.96 | 62.4 | 21.8 | |||
| 28 | 26.11 | 25.48 | 1.5 | 1.44 | 2 | 2.92 | 70 | 65.96 | 64.4 | 22 | |||
| 29 | 27.11 | 26.48 | 1.5 | 1.44 | 2 | 3.2 | 72 | 67.96 | 66.4 | 22.5 | |||
| 30 | 28.11 | 27.48 | 1.5 | 1.44 | 2 | 3.31 | 75 | 70.96 | 69.4 | 24.6 | |||
| 32 | 29.81 | 29.18 | 1.5 | 1.44 | 2.5 | 3.54 | 78 | 73.96 | 72.4 | 26.2 | |||
| 34 | 31.75 | 31 | 1.5 | 1.44 | 2.5 | 3.8 | 80 | 74.96 | 73.4 | 27.3 | |||
| 35 | 32.45 | 31.7 | 1.5 | 1.44 | 2.5 | 4 | 82 | 76.96 | 75.4 | 31.2 | |||
| 36 | 33.45 | 32.7 | 1.75 | 1.69 | 2.5 | 5 | 85 | 79.96 | 78.4 | 3 | 2.92 | 3.5 | 36.4 |
| 38 | 35.45 | 34.7 | 1.75 | 1.69 | 2.5 | 5.62 | 88 | 83.04 | 81.2 | 41.2 | |||
| 40 | 36.89 | 35.6 | 1.75 | 1.69 | 2.5 | 6.03 | 90 | 85.04 | 83.2 | 44.5 | |||
| 42 | 38.89 | 37.6 | 1.75 | 1.69 | 2.5 | 6.5 | 95 | 90.04 | 88.2 | 49 | |||
| 45 | 41.89 | 40.6 | 1.75 | 1.69 | 2.5 | 7.5 | 100 | 95.04 | 93.2 | 53.7 | |||
|
|
